Heliguy selling Viewpro cameras

Heliguy is now selling the state-of-the-art Viewpro range of optical-zoom gimbal cameras, which benefit from a mix of thermal, infrared, laser and night-vision technology and can be docked with the DJI Matrice drone series.

Designed to enhance productivity and security across numerous sectors,  the sensors can be a vital tool for the likes of police, military, search and rescue, object tracking and industry inspections, as well as day and night aerial surveillance.

Heliguy has teamed up with Viewpro to sell the Z30TM, Z10TL, Z10TIRM, Mini Z10TIR and the WK10TIRM. Inquiries can be made to us by email or phone.

• Z10-Mini-700x700.jpg

  Mini Z10TIR

• Z10TL-700x700.jpg

  Z10TL

• WK10TIRM-700x700.png

  WK10TIRM

• Z10TIRM-700x700.jpg

  Z10TIRM

• Z30TM-700x700.jpg

  Z30TM

These highly-stable pieces of kit can integrate with the DJI Matrice series (M200, M210 and M210 RTK), which are all available from Heliguy, as well as fixed-wing models.

Shenzhen Viewpro Technology is a hi-tech manufacturer specialising in UAV zoom-gimbal cameras, research and development and manufacturing. It is a leader in the UAV payload industry.

A LOOK AT THE CAMERAS IN MORE DETAIL

First up is Viewpro's laser ranger object GPS location resolving object-tracking series.

In these models, an advanced location-resolving algorithm is used to calculate the distance of the object, accurately analyse the longitude and latitude of the object and display the GPS coordinate onscreen.

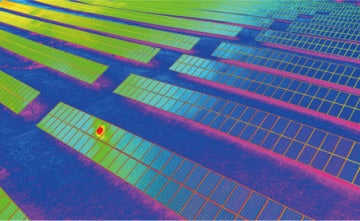

Among these, the Z10TIRM and the WK10TIRM also benefit from EO + IR (Electro-Optical/Infrared) dual-sensor technology, meaning that thermal and visible images can be recorded and transmitted at the same time. Thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view of the world can reveal when equipment or buildings are damaged, fire spark in a forest, the location of missing people and more.

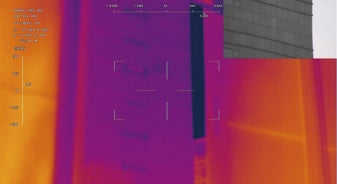

Laser ranger gimbal cameras have a great auxiliary role in the enforcement of military, police, firefighting and others. Below is a picture of a thermal image combined with a laser-ranger camera.

Viewpro Z10TIRM

The Z10TIRM is a 10x, three-light EO and IR dual-sensor laser ranger location-resolving gimbal camera, which can pan and tilt.

• Z10-TIRM-4-700x700.jpg

• Z10-TIRM-3-700x700.jpg

• Z10-TIRM-2-700x700.jpg

Its key features are:

• EO + IR dual-sensor gimbal camera

• 10x zoom

• Thermal imager

• Target tracking/target location resolution

• 1500 meters ranging

• DJI Skyport interface

• DJI Pilot APP control

• Seamlessly dock with DJI M200, M210 and M210 RTK

Its key specifications are:

• Image sensor: 1/3" CMOS

• Lens: 10x optical zoom, F=3.2-33.6mm

• Total pixel: 4.08MP

• Thermal imager: 640*480, 19mm lens

• Track object size range: 16*16 pixel-160*160 pixel

• Tracking speed: ±32 pixel/frame

• Working voltage: 12V 3s-4s

• Output: microHDMI 1080p/RJ45/SDI

• Local storage: SD card up to 128G

• Net weight: 900g

• Dimensions: 175.5*156.7*145mm

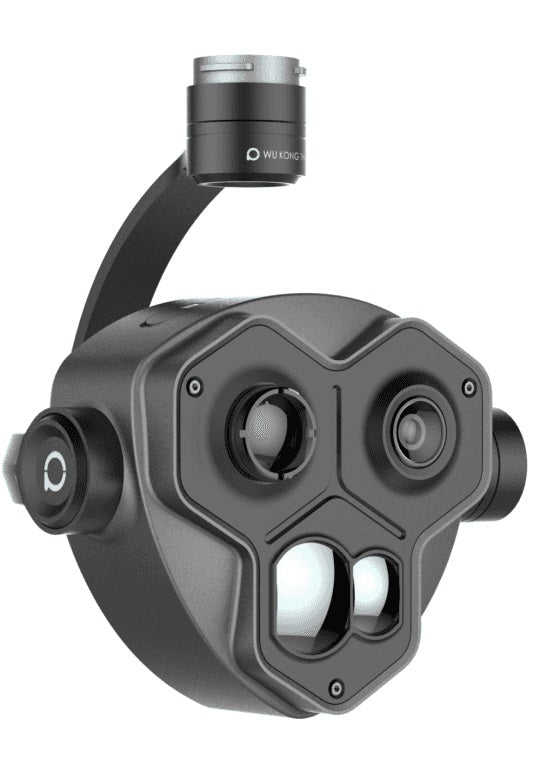

Viewpro WK10TIRM

The Viewpro WK10TIRM is a 10x, three-light EO + IR dual-sensor laser ranger location-resolving pan/tilt gimbal camera.

Its key features are:

• EO + IR dual-sensor gimbal camera

• 10x zoom

• GPS position OSD overlay

• 1500 meters ranging

• DJI Skyport interface

• DJI Pilot app control

• Seamlessly dock with DJI M200, M210 and M210 RTK

Its key specifications are:

• Image sensor: 1/3" CMOS

• Lens: 10x optical zoom, F=3.2-33.6mm

• Total pixel: 4.08MP

• Thermal imager: 640*480, 19mm lens

• Tracking object size range: 16*16 pixel-160*160 pixel

• Tracking speed: ±32 pixel/frame

• Working voltage: 12V (3s-4s)

• Output: microHDMI 1080p/RJ45/SDI

• Local storage: SD card up to 128G

• Net weight: 900g

• Dimensions: 175.5*156.7*145mm

Viewpro Z30TM

Next in the laser ranger, object tracking gimbal camera series is the Z30TM. While this product does not come with an EO and IR dual sensor, it does benefit from a 30x zoom.

• TM-1-1.jpg

• TM-2-700x700.jpg

• TM-4-700x700.jpg

Its key features are:

• Three-axis 30x optical zoom

• Full HD (2-13MP)

• 1500 metres laser range

• Object tracking/location resolving

• DJI Skyport interface

• DJI Pilot app control

• Seamlessly dock with DJI M200, M210 and M210 RTK

Its key specifications are:

• Image sensor: SONY ½.8” “Exmor R” CMOS

• Lens: 30x optical zoom, F=4.3-129mm

• Total pixel: 2-13MP

• Tracking object size range: 1616 pixel - 160160 pixel

• Tracking speed: ±32 pixel/frame

• Working voltage: 12V (3s-4s)

• Output: microHDMI 1080p/RJ45/SDI

• Local storage: SD card up to 128G

• Net weight: 835g

• Dimension: 135.5*135*120mm

Viewpro Mini Z10TIR

Next up is the Viewpro Mini Z10TIR, which is a 10x thermal image tracking mini pan/tilt camera.

It is not in Viewpro's laser-ranger series, but this impressive piece of kit is perfect for object tracking and packs an EO and IR dual-sensor to boot.

Mini by name, mini by nature, this particular model is small in size and light in weight, tipping the scales at just 490g.

There are two video streams in the camera: One is 1080P 30FPS, local H.264 compression, stored in the device SD card, while there is another video output - 1080p 60FPS HDMI HD signal for the wireless transmission.

• Mini-4-700x700.jpg

• Mini-2-700x700.jpg

• Mini-5-700x700.jpg

Its key features are:

• EO + IR dual-sensor object tracking mini gimbal camera

• 10x zoom

• Visible light and thermal image-in-picture display

• Compatible with the DJI Pilot app

• Seamlessly dock with DJI M200, M210 and M210RTK

Its key specifications are:

• Image sensor: 1/3" CMOS

• Lens: 10x optical zoom, F=3.2-33.6mm

• Total pixel: 4.08MP

• Thermal imager: 640*480, 19mm lens

• Track object size range: 16*16 pixel-160*160 pixel

• Tracking speed: ±32 pixel/frame

• Working voltage: 12V (3s-4s)

• Output: microHDMI 1080p/RJ45/SDI

• Local storage: SD card up to 128G

• Net weight: 490g

• Dimensions: 118*109*120mm

Viewpro Z10TL

Last, but by no means least, is the Viewpro Z10TL. This particular model differs from the previous products as it is part of the laser night-vision series. The camera benefits from a 10x zoom with infrared capabilities.

Combined with power-laser supplements, laser night-vision gimbal cameras help you to observe an event, even on a pitch-black night, meeting the requirements in various domains for night patrol and search.

 The Z10TL can clearly display image features in a poor light environment. A 2 megapixel (effective) camera, combined with powerful optical zoom technology, and 300-metre laser light supplement, enables an observation range of up to 300-metres - even on a pitch black night.

• Z10TL-1-700x700.jpg

• Z10-2-700x700.jpg

• Z10-1-700x700.jpg

Its key features are:

• 10x zoom

• Infrared laser effective distance of 300m

• HDMI HD - 1080p60, 1080p30

• DJI Skyport interface

• DJI Pilot app control

• Seamlessly dock with DJI M200, M210 and M210 RTK

Its key specifications are:

• Image sensor: 1/2.8" CMOS

• Lens: 10x optical zoom, F=4.7-47mm

• Total pixel: 2.43MP

• Laser ranger: 300 metres

• Track object size range: 16*16 pixel-160*160 pixel

• Tracking speed: ±32 pixel/frame

• Working voltage: 12V (3s-4s)

• Output: microHDMI 1080p

• Local storage: SD card up to 128G

• Net weight: 650g

• Dimensions: 131.4*119.8*150.5mm
