The H20T camera for the DJI M300 RTK.
Approved Used Grade B DJI Zenmuse H20T Thermal Camera

Approved Used Grade B DJI Zenmuse H20T Thermal Camera

SKU: CP.ZM.00000121.01

£7,344.00 Regular price £10,200.00 Sale price Save £2,856.00
/
Tax included in UK  & Free Delivery
Notify Me When Available
Currently 2 units in stock.

What's in the Box

Take a look

Updated on variant change.

Explore what's inside the box.

Need advice on this product?

Ask a Question

Our experts are on hand to help you.

When You Spend £99

Free Next Working Day Delivery

Saturday Delivery Also available.

Help and Advice

Frequently Asked Questions

Common questions about the H20 Series - answered

What is the difference between the Zenmuse H20 and Zenmuse H20T?

The Zenmuse H20 is a triple-sensor model with a wide-angle camera, a zoom camera, and a laser rangefinder.

The Zenmuse H20T is a quad-sensor model with a wide-angle camera, a zoom camera, a laser rangefinder, and a radiometric thermal camera.


Both cameras are compatible with the DJI M300 RTK drone and DJI M350 RTK. Ensure firmware is updated to the latest version.
Are the cameras waterproof?

Under controlled laboratory conditions, the Zenmuse H20 Series meets the IP44 protection level.

This means that the H20 and H20T can be used in wet weather, to a certain extent. But IP44 is not a complete waterproofing.

For a full guide on IP Ratings and flying in wet weather, click here.

The protection level is not permanently effective, and will weaken with wear and tear.

Tips include:

• Make sure the gimbal connector interface and gimbal surface are dry and free of moisture before installing the gimbal.

• Before use, make sure that the gimbal is firmly installed onto the aircraft, and the SD card cover is clean, free of foreign objects, and securely closed.

• Before opening the SD card cover, wipe the surface of the body clean.

What are the image resolutions of the cameras?



Radiometric thermal camera: R-JPEG, 640×512 px

Wide-angle camera: JPEG, 4056×3040 px

Zoom camera: JPEG, 5184×3888 px
What video resolutions do the cameras have?



Radiometric thermal camera: 640×512@30fps

Wide-angle camera: 1920×1080@30fps

Zoom camera: 3840×2160@30fps / 1920×1080@30fps
Which video format is supported?

MP4 encoded with H.264 compression

What level of zoom can be achieved with the H20 Series?

Both the H20 and H20T can achieve 23× hybrid optical zoom, and a 200× maximum zoom.

What is the minimum focusing distance of the visible cameras of the Zenmuse H20 Series payloads?



The higher the zoom factor, the longer the focusing distance.

1×-2.8×, the minimum focusing distance is 1 m.
2.9×-3.9×, the minimum focusing distance is 2 m.
4×-4.6×, the minimum focusing distance is 3 m.
4.7×-14.2×, the minimum focusing distance is 5 m.
14.3×-200×, the minimum focusing distance is 8 m.

If the object is within the minimum focusing distance, the camera will not be able to focus. For example, if the aircraft/payload is 5 m away from a pylon, the camera will not be able to focus at a zoom level greater than 14.2×.
What factors affect the accuracy of the laser rangefinder?



Laser rangefinders measure distance using the time of flight of light. Their accuracy could be affected in environments where this ToF is affected: The range will be reduced in smoke, rain, snow, dust, and other environments, and data readings may be jumbled.

When measuring an object with glass or transparent components:

• If the glass is within moderate distance, the distance to the glass will be measured (not the object behind the glass);
• The glass may reflect the laser beam to other locations, resulting in the distance to other locations;
• If the surface of the glass is very smooth or too close, the light will pass through the glass to detect the objects behind, but the range will be significantly reduced.
What is the accuracy of temperature measurements of the Zenmuse H20T?



The accuracy is ±2 °C or ±2%, whichever is greater. (Measured at 25 °C in a windless laboratory, 5 m away from the black body).

Note: Black bodies have different emissivity levels, the measurement above is is based on the particular black body measured and for reference only.
What factors affect the accuracy of temperature measurement of the Zenmuse H20T?



The reflectivity of objects: Shiny metals have higher reflectivity, resulting in lower accuracy and lower temperature readings.

The temperature of background radiation: A clear, sunny day will have less of an effect on accuracy than a cloudy day.

Air temperature and humidity: The higher the temperature and humidity, the more likely the readings will be affected, and the lower the accuracy.

Distance between the camera and the object: The farther away the object is from the camera, the lower the accuracy.
What is the difference between high and low gain modes in the thermal camera of the Zenmuse H20T?



High gain mode: Displays a smaller temperature measurement range at a high quality, the temperature measurement range is -40 °C to 150 °C.

Low gain mode: Displays a larger temperature range at relatively lower quality, the temperature measurement range is -40 °C to 550 °C.
Does the thermal camera in the Zenmuse H20T support digital zoom?

Yes. It supports 2×, 4×, and 8× digital zoom.

What is Flat-Field Calibration or FFC in the Zenmuse H20T?

Flat-Field Calibration is used to optimise thermal image quality so temperature changes can be observed more easily. You can choose to manually enable FFC by turning off the automatic FFC adjustment in settings.

How can I measure temperature using the Zenmuse H20T?

Operators can measure temperature in two ways: Spot Meter for measuring a single position, and Area Measurement for getting different readings in an area.

What is the focal length of the thermal camera on the Zenmuse H20T?

The Zenmuse H20T only has one model. Its thermal camera has a focal length of 13.5 mm (F1.0), equivalent focal length: 58mm, DFOV 40.6°

What happens when the lens fogs up?

The Zenmuse H20 Series is designed to prevent water damage to the camera components. But if the humidity is too high or if the payload is exposed to rain, water vapour could still enter the camera. Once powered on, the electrical components will heat up, causing the water vapour to evaporate, resulting in condensation or fog on the lens. This can usually be solved by turning on the aircraft/payload and waiting for the water vapour to dissipate. When not in use, store the payload in a designated case or a cool, dry place with a relative humidity of less than 40%.

What can I do when the protective glass to the camera fogs up?

A protective material that protects against moisture is added between the lens and the protective glass to prevent moisture condensation on the protective glass. But it could be saturated with moisture if the humidity of the storage location is too high or if a wet payload is put back into the box. This could cause the protective glass to fog up, and it might take a while for the fog to dissipate once turned on. You can use a blow dryer to speed up the process. Again, we recommend wiping the payload dry after water exposure, and storing it in a designated case or a cool, dry place with a relative humidity of less than 40%.

What is Night Scene Mode?

In Night Scene Mode, the camera will switch the IR filter and adjust the ISP parameters to optimise for lowlight environments.

What is High-Res Grid Photo Mode?

In DJI Pilot, by dragging to select an area in wide camera view, an image will be taken using the wide-angle camera while the gimbal rotates to automatically capture a series of photos at 20 MP of the selected area using the zoom camera at the current zoom level. All of the images captured will be stored in the same sub-folder on the SD card, generating an HTML file that can be opened in a web browser to view the overview image and the detailed close-up images.

What is the maximum Micro SD capacity supported?

128 GB. It is recommended to use a UHS-I Speed Grade 3 Micro SD card.

Which apps are compatible?

Currently, the Zenmuse H20 Series only supports the Android version of DJI Pilot.

Can a photograph be taken while recording a video?

Yes. Updating to the latest firmware version is required.

Are timed photos supported?



Yes. Updating to the latest firmware version is required.
Which drone platforms are the H20 and H20T compatible with?

The cameras are compatible with the DJI Matrice 300 RTK. Update the aircraft and remote controller with the latest firmware.

Which gimbal port can the cameras be mounted?

They can both be mounted onto any one of the three gimbal ports on the M300 RTK/M350 RTK.

How do I upgrade the firmware of the Zenmuse H20 Series?



Before upgrading, please ensure that the aircraft is powered off, the Zenmuse H20 series gimbal and camera is securely mounted to the aircraft, the microSD card has enough storage space, and that the intelligent flight battery has enough power.

1. Visit the official DJI website and enter the Downloads section of the Zenmuse H20 Series product page.
2. Download the latest firmware package.
3. Store the downloaded firmware package onto the root directory of the microSD card.
4. Insert the microSD card into the microSD card slot of the Zenmuse H20 series gimbal and camera.
5. Power on the aircraft, and the gimbal will start to perform a self-check, and then automatically upgrade the firmware. Then, the buzzer will beep to indicate the status.
6. Restart all devices after the update is completed.

Gimbal upgrade status description:

• 4 short beeps ...new firmware detected, ready to upgrade.
• 2 long beeps …upgrading firmware, do not stop the update.
• 1 long beep followed by 2 short beeps… The firmware update was successful.
• Continuous long beep... The firmware update failed, please try to update again. Contact us for help if needed.

Notes:

• Only store one version of firmware on the microSD card. Multiple versions of firmware stored in the microSD card will cause an upgrade failure.
• During the firmware upgrade, the alarm tone may disappear temporarily. Please be patient and ensure that the alarm tone is 1 long beep followed by 2 short beeps. This indicates that the firmware upgrade was successful.
• Do not power off the aircraft or detach the gimbal and camera from the aircraft during the upgrade, or it may damage the gimbal.
What are some safety precautions that I should keep in mind when using the Zenmuse H20 Series?



• Do not aim the camera lens at high-energy power sources, such as the sun, lava, or laser beams. The temperatures of observation targets should not exceed 800 °C, or the camera could be irreversibly damaged.

• Do not place the camera under direct sunlight, in places with poor ventilation, or near heaters.

• Do not power on or off the camera too frequently. Please wait at least 30 seconds before restarting the camera, or it may affect the service life of camera chips.

• Do not hot-swap the microSD card during use.

• Do not touch the camera lens or scratch it with hard objects, as this could result in blurry images.

• Use a soft, dry cloth to clean the surface of the camera lens. Do not use alkaline detergents.

• Store the payload in a designated case that is kept dry and ventilated.
For what scenarios can I use the Zenmuse H20 Series?

Thanks to its wide array of camera capabilities, the Zenmuse H20 Series delivers useful insights in a variety of scenarios.


These include public safety applications such as firefighting, fire prevention, search and rescue, and law enforcement; energy industry application including asset and equipment inspection, geothermal energy exploration, and oil and gas inspection.
Can the Zenmuse H20 Series be used for aerial surveying?

The Zenmuse H20 Series was not designed specifically to meet the accuracy requirements for aerial surveying, but you can use the wide-angle camera to capture images in Mapping missions in the DJI Pilot App.

Full Description

Zenmuse H20T Thermal Camera

Introducing the Zenmuse H20 Series - DJI’s first hybrid sensor thermal payloads.

What are the H20 and H20T Cameras?

The H20 and H20T are IP44-rated multi-sensor cameras which ensure mission efficiency for a range of commercial drone applications, including firefighting, law enforcement, and search and rescue, as well as inspections of powerlines and within the oil and gas sectors.

With a 200x max. zoom you can see more than ever before with your drone camera.
The key features of these payloads, engineered for the DJI M300 RTK drone and DJI M350 RTK, are:
Zenmuse H20 - Triple-Sensor Solution
  • 20MP Zoom Camera
  • 12MP Wide Camera
  • 1200m Laser Rangefinder
Zenmuse H20T - Quad-Sensor Solution
  • 20MP Zoom Camera
  • 12MP Wide Camera
  • 1200m Laser Rangefinder
  • 640×512 px Radiometric Thermal Camera
DJI Zenmuse H20T Radiometric Thermal Camera

Zenmuse H20 Series Cameras In Detail

Here are the crucial specifications of each aspect of the H20 and H20T payloads from DJI:

Wide Camera

Equivalent Focal Length

24mm

DFOV

82.9°

Sensor

12MP 1/2.3” CMOS Sensor





Laser Rangefinder

Zoom

3 m – 1200 m

Accuracy

± (0.2 m + D×0.15%)

Powerful Zoom Camera

Zoom

23× Hybrid Optical Zoom;

200× Max Zoom

Sensor

20MP 1/1.7” CMOS Sensor

Video Resolution

4K/30fps

Radiometric Thermal Camera

DFOV

40.6°

Resolution

640×512

Frame Rate

30fps

Zenmuse H20 Camera for Matrice 300

Zenmuse H20 & H20T Features

The H20 Series is packed with a host of intelligent features to help transform your drone missions and collect fast, accurate and reliable data.

These features include:

Multi-Sensor Payloads

The H20 Series is a truly all-in-one solution, helping you see the full picture without missing any details.

The H20 Series comes with an all-in-one user interface that enables fast switching between wide-angle, zoom and thermal imaging, as well as preview the zoom FOV while in wide or thermal camera view.

AI Spot-Check

This function allows you to automate routine inspections and capture accurate data, time after time.

Hone in on a subject of interest and the onboard AI recognises this in subsequent missions, to ensure consistent framing and enabling you to monitor a specific subject over a period of time.

PinPoint

Mark an object in view with a quick tap, and immediately find out its coordinates.

Smart Track

Locate and follow moving subjects with the auto-zoom function, while acquiring your target’s dynamic location.

Zenmuse H20T Thermal Performance

Gather vital information with the H20T’s thermal sensor to help with a range of missions, from finding a missing person, to detecting hotspots during a fire, or inspecting your asset.


This is crucial for increasing efficiency, maximising results, keeping your staff safe , and gaining valuable situational awareness and insights.

Key features of the thermal camera include:

Spot Meter

Tap a point for a real-time reading of the surface temperature.

Area Measurement

Select an area to view the lowest, highest, and average temperatures.

Temp Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Isotherms

Visualise a specific band of temperatures to find what is important.

Colour Palettes

Adjust the colours applied to the thermal data based on the needs of specific scenarios.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images

Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

Zenmuse H20T Thermal Camera for Matrice 300

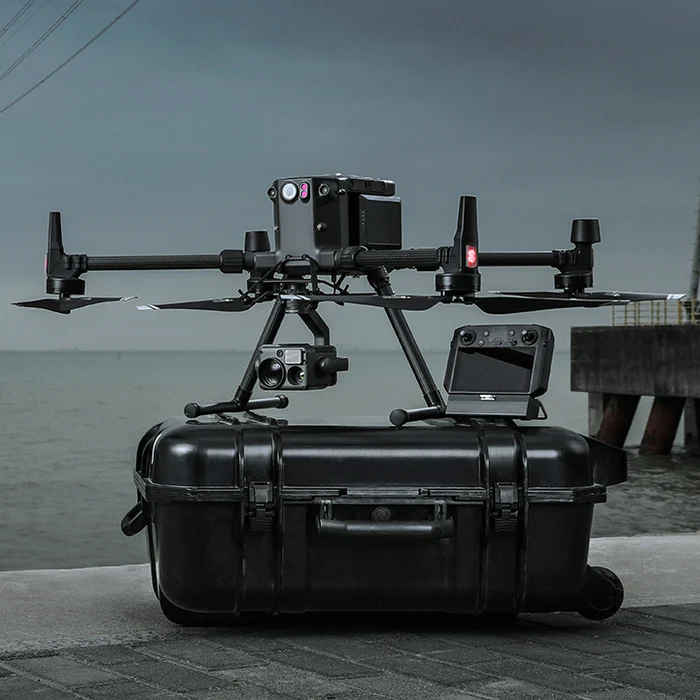

Zenmuse H20T Thermal On DJI Matrice 300 RTK Drone

Why Buy Zenmuse H20 Cameras?

  • Hybrid Optical Zoom - 23x
  • Max. Zoom - 200x
  • One Click Capture - One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously.
  • Point to Aim - Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest.
  • High-Res Grid Photo - Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
  • Night Scene - Supported (zoom camera)
  • Timestamp - Including GPS, date and time

Zenmuse H20 & H20T FAQs

Answers to your most common queries around M300 Cameras and Gimbals.

What payload configurations do the M300 RTK and M350 RTK support?

The M300 RTK and M350 RTK support carrying up to three payloads at once. Various configurations are available.

Which payloads are compatible with M300 RTK and M350 RTK?

The M300 RTK is compatible with DJI Zenmuse H20/H20T, Zenmuse H20N, Zenmuse XT S, Zenmuse XT2, Zenmuse Z30, Zenmuse P1, and Zenmuse L1, as well as third-party payloads developed using DJI Payload SDK. The M350 RTK is compatible with DJI Zenmuse H20/H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1, as well as third-party payloads.

Download the latest firmware of the payloads and update the firmware before using them with the  M300 RTK and M350 RTK.

Can the downward single gimbal connector be replaced with a dual gimbal connector?

Yes. To ensure safety, before replacing the gimbal connector, it is recommended to power off the aircraft and remove the TB60 Intelligent Flight Batteries.

How many camera feeds can be viewed at the same time?

Dual Remote Controller Mode: View up to three live feeds simultaneously (including FPV camera);

Single Remote Controller Mode: View of up to two live feeds simultaneously (including FPV camera).

How many payloads can be mounted at the same time?

The M300 RTK and M350 RTK can carry three payloads at the same time using the dual downward gimbal connector and the upward gimbal connector.

Can I control multiple gimbals simultaneously?

You can control the movements of each gimbal simultaneously, but you can't take photos/videos simultaneously.

Product Specification

Zenmuse H20 and H20T Specifications

General Specs



Zenmuse H20

Zenmuse H20T

Weight

678±5 g

828±5 g

Dimensions

150×114×151mm

167×135×161mm

Ingress Protection Rating

IP44

IP44

Operating Temperature

-20° to 50° C

(Temperature Measurement is only available between -10° to 50° C)
-20° to 50° C
(Temperature Measurement is only available between -10° to 50° C)

Storage Temperature

-20° to 60°C

-20° to 60°C

Laser Safety

Class 1M

(IEC 60825-1:2014)

Class 1M

(IEC 60825-1:2014)

Supported Aircraft

Matrice 300 RTK and M350 RTK

Matrice 300 RTK and M350 RTK

Gimbal Specs



Zenmuse H20

Zenmuse H20T

Angular Vibration Range

±0.01°

±0.01°

Mount

Detachable

Detachable

Controllable Range

Pitch: -120° to +30°

Yaw: ±320°
Pitch: -120° to +30°
Yaw: ±320°

Mechanical Range

-20° to 50° C

(Temperature Measurement is only available between -10° to 50° C)
-20° to 50° C
(Temperature Measurement is only available between -10° to 50° C)

Storage Temperature

Pitch: -132.5° to +42.5°

Yaw: ±330°
Roll: -90° to +60°

Pitch: -132.5° to +42.5°

Yaw: ±330°
Roll: -90° to +60°

Zoom Camera Specs



Zenmuse H20

Zenmuse H20T

Sensor

1/1.7" CMOS, 20 MP

1/1.7" CMOS, 20 MP

Lens

DFOV:66.6°-4°

Focal length:6.83-119.94 mm (equivalent: 31.7-556.2 mm)
Aperture: f/2.8-f/11 (normal),f/1.6-f/11 (night scene)
Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)

DFOV:66.6°-4°

Focal length:6.83-119.94 mm (equivalent: 31.7-556.2 mm)
Aperture: f/2.8-f/11 (normal),f/1.6-f/11 (night scene)
Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)

Focus Mode

MF/AF-C/AF-S

MF/AF-C/AF-S

Exposure Mode

Auto, Manual

Auto, Manual

Exposure Compensation

±3.0 (1/3 increments)

±3.0 (1/3 increments)

Metering Mode

Spot metering,

Centre-weighted metering

Spot metering,

Centre-weighted metering

AE LOCK

Supported

Supported

Electronic Shutter Speed

1 ~ 1/8000 s

1 ~ 1/8000 s

ISO Range

Video: 100 - 25600

Photo: 100 - 25600

Video: 100 - 25600

Photo: 100 - 25600

Video Resolution

3840x2160@30fps,

1920x1080@30fps

3840x2160@30fps,

1920x1080@30fps

Video Format

MP4

MP4

Video Subtitles

Supported

Supported

Photo Size

5184 x 3888

5184 x 3888

Photo Format

JPEG

JPEG

Wide Camera Specs



Zenmuse H20

Zenmuse H20T

Sensor

1/2.3" CMOS, 12MP

1/2.3" CMOS, 12MP

Lens

DFOV:82.9°

Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

DFOV:82.9°

Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

Exposure Mode

Auto

Auto

Exposure Compensation

±3.0 (1/3 increments)

±3.0 (1/3 increments)

Metering Mode

Spot metering,

Centre-weighted metering

Spot metering,

Centre-weighted metering

AE LOCK

Supported

Supported

Shutter Speed

1 ~ 1/8000 s

1 ~ 1/8000 s

ISO Range

Video: 100 - 25600

Photo: 100 - 25600

Video: 100 - 25600

Photo: 100 - 25600

Video Resolution

1920×1080@30fps

1920×1080@30fps

Video Format

MP4

MP4

Video Subtitles

Supported

Supported

Photo Size

4056 x 3040

4056 x 3040

Photo Format

JPEG

JPEG

Thermal Camera Specs



Zenmuse H20

Zenmuse H20T

Sensor

N/A

Uncooled VOx Microbolometer

Lens

N/A

DFOV: 40.6°

Focal length: 13.5 mm (equivalent: 58 mm)
Aperture: f/1.0
Focus: 5 m to ∞

Digital Zoom

N/A

1x, 2x, 4x, 8x

Video Resolution

N/A

640×512 @ 30Hz

Video Format

N/A

MP4

Image Resolution

N/A

640×512

Image Format

N/A

R-JPEG* (16 bit)

Pixel Pitch

N/A

12 μm

Spectral Band

N/A

8-14 μm

Sensitivity (NETD)

N/A

≤50 mK @ f/1.0

Temperature Measurement Method

N/A

Spot Meter,

Area Measurement

Scene Range

N/A

-40°C to 150°C (High Gain)

-40°C to 550°C (Low Gain)

Temperature Alert

N/A

Supported

FFC

N/A

Auto/Manual

Palette

N/A

White hot

Fulgurite
Iron Red
Hot Iron
Medical
Arctic
Rainbow 1
Rainbow 2
Tint
Black Hot

Laser RangeFinder Specs



Zenmuse H20

Zenmuse H20T

Wave length

905 nm

905 nm

Measurement range

3-1200 m

(to a vertical surface with ≥12m diameter and 20% reflection rate)
3-1200 m
(to a vertical surface with ≥12m diameter and 20% reflection rate)

Measurement accuracy

± (0.2 m + D×0.15%). D is the distance to a vertical surface

± (0.2 m + D×0.15%). D is the distance to a vertical surface

What's in the Box

DJI Zenmuse H20T Thermal Camera x1
Lens Cover x1
Protective Flight Case x1

Please note that this product may or may not come with a manual and/or a cover cap for the clip-on mechanism.

You may also like
