DJI Dock 3 With DJI Matrice 4TD

Supports vehicle-mounted deployments.

Designed for two docks to be deployed from a single vehicle for dual-drone rotations.

Meets the needs of public safety, emergency response, and infrastructure inspection.

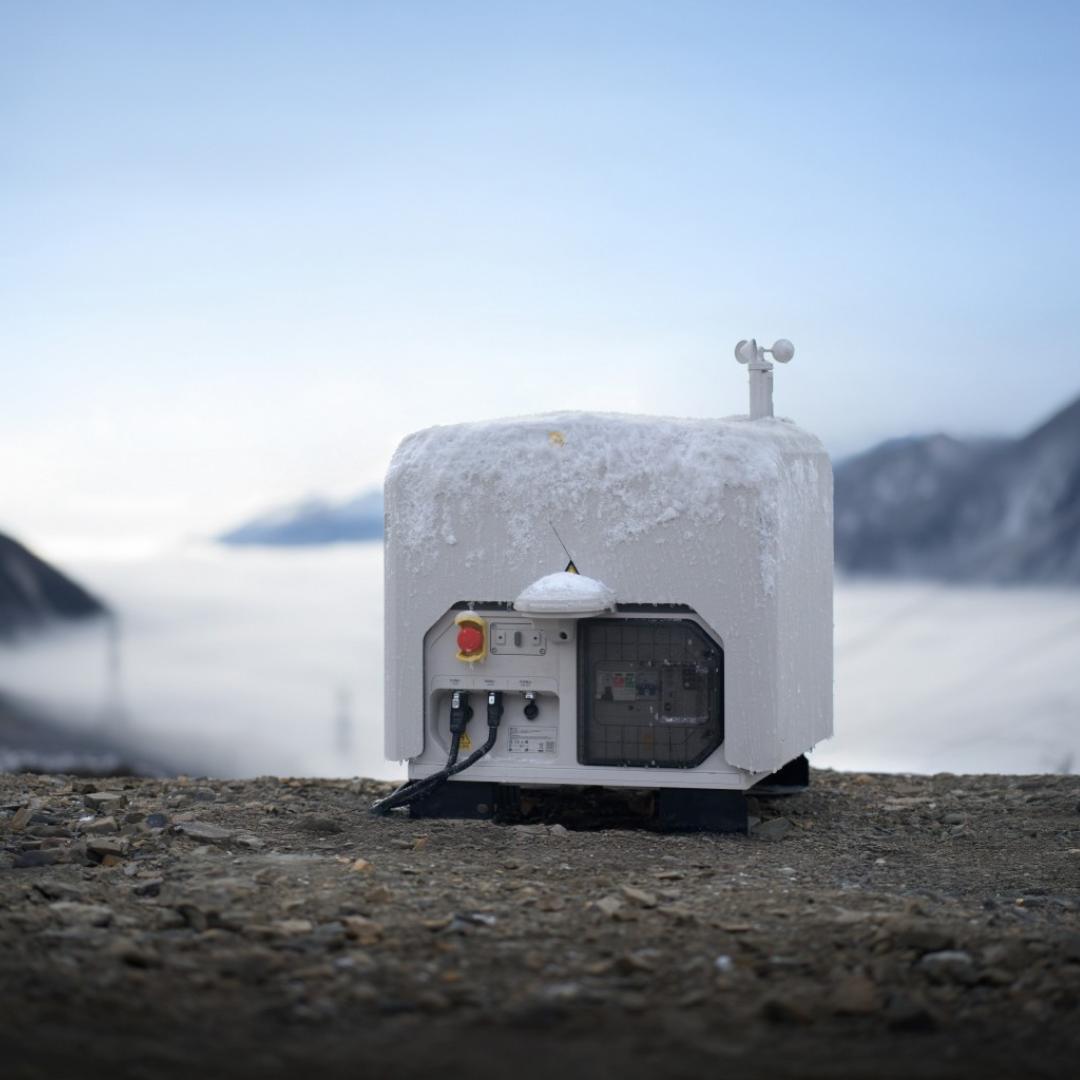

Dock 3 handles temperatures from 50°C to -30°C and has an internal IP56-rated system.

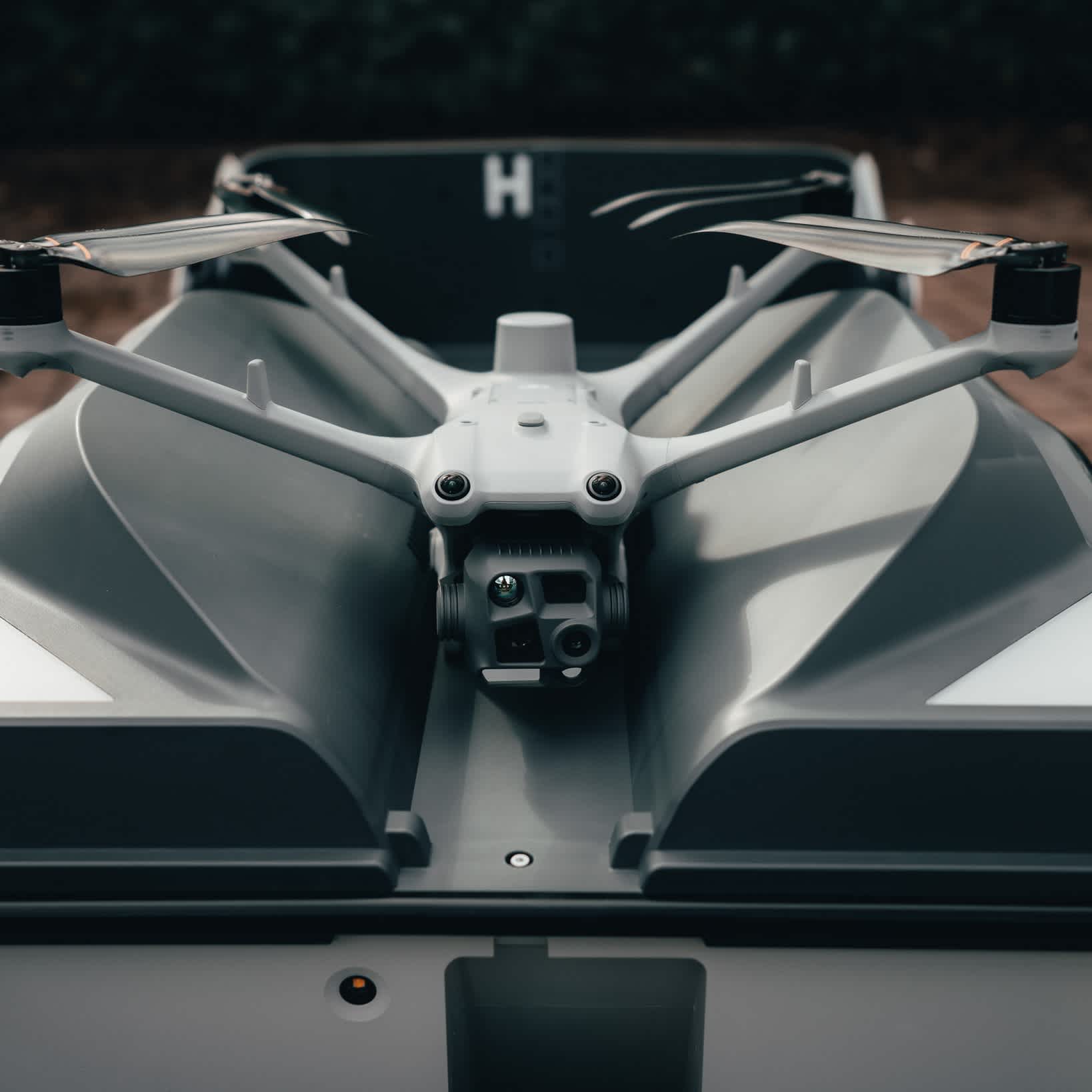

Compatible with DJI M4D and M4TD - which are IP55-rated and have a flight time of 54 minutes.

M4TD's integrated payload has six modules for versatile data collection, including a thermal camera.

DJI's Flight Termination System can be manually triggered to terminate the mission - increasing safety during missions.

Pair with DJI FlightHub 2 for remote and automated deployment. FlightHub 2 has obtained ISO 27001 certification, meeting information security management standards.

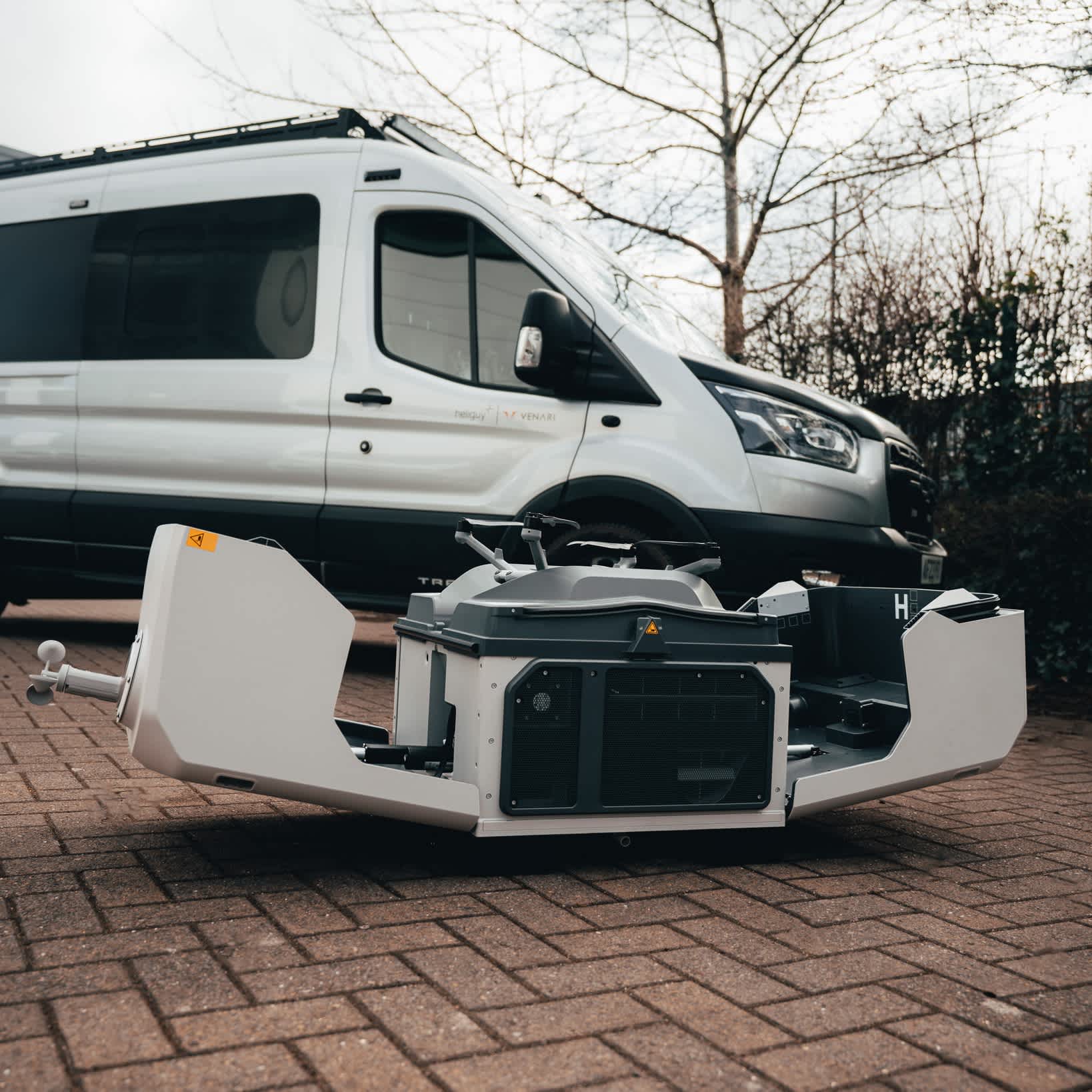

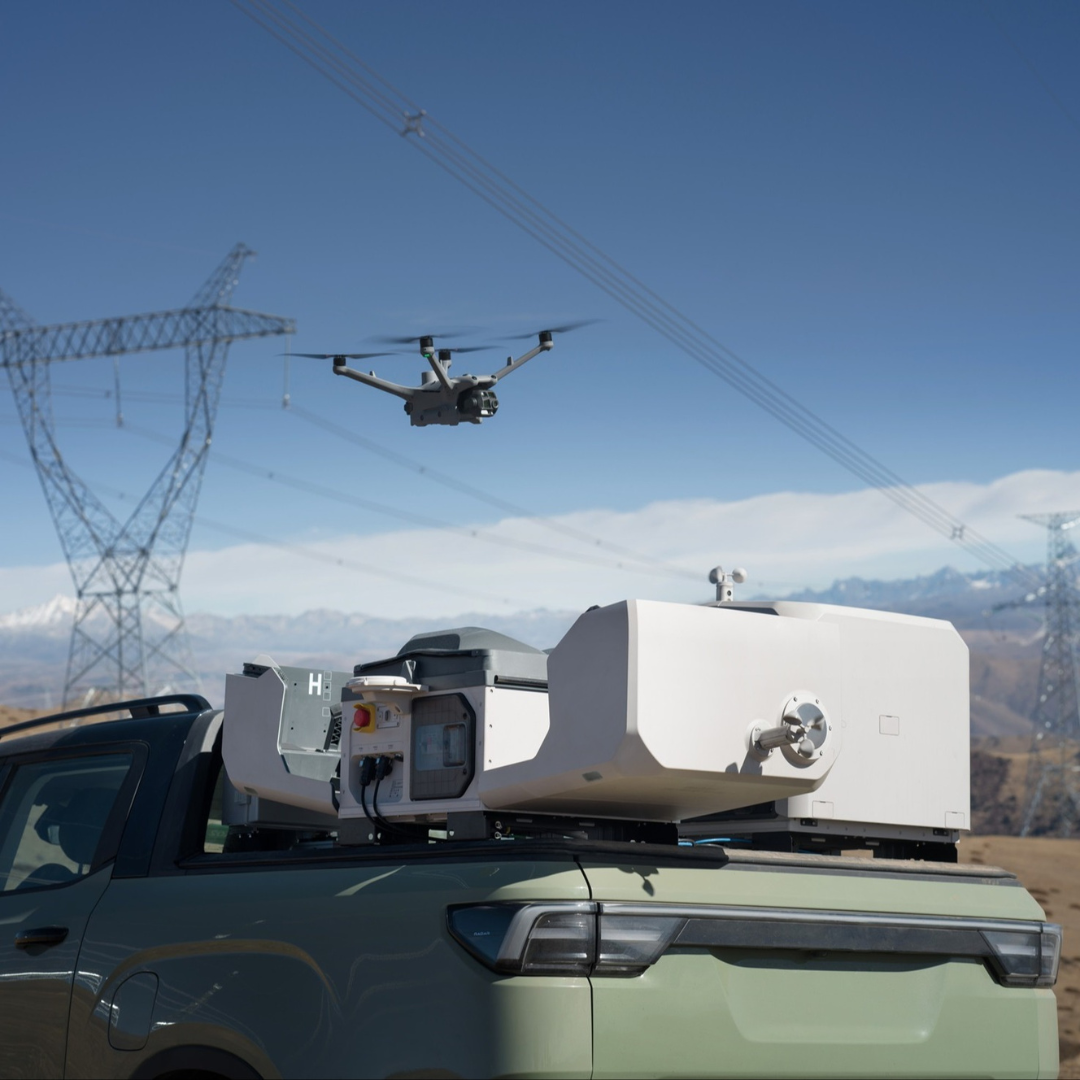

Deploy From A Vehicle: Dock 3 is the first DJI Dock that is optimised for vehicle-mounted deployments. This drone-in-a-box supports horizontal calibration and cloud-based dock location calibrations.

Dual Dock Deployment: Increase efficiency by deploying two Docks simultaneously on a single vehicle for dual-drone rotations.

Fixed-mounted Operations: A new D-RTK 3 Relay Fixed Deployment Version - available separately - can be added for fixed-mouted deployments.. This enhanes the dock's anti-interference performance for video transmission and satellite acquisition.

Seamless Airborne Relay: Operate DJI M4D Series drones with the DJI RC Plus 2 Enterprise remote controller for standalone deployment or with an onboard relay function - allowing one drone to fly as a relay to extend the operational range of the other. This is crucial for operations such as search and rescue.

Automated Flight Routes & Real-Time Detection: Preprogrammed object detection and Intelligent Recognition allow the drone to detect and capture images or videos of vehicles, vessels, and people. It also detects infrared temperature anomalies and sends notifications to operators.

Intelligent Change Detection: Provides operators with periodical analysis of changes in 2D maps, improving mapping accuracy and supporting environmental protection and disaster response efforts.

Smart Tracking: The gimbal camera automatically follows objects of interest, enabling precise and efficient data collection.

Virtual Cockpit: Allows operators to adjust the gimbal orientation remotely with the new Mouselook feature, enabling rapid and precise centering of the frame, thus achieving 'point and see'.

Low-latency Live View: Engine upgrade significantly reduces FlightHub 2 live-view latency.

Open and Fly: Rapid takeoff. After enabling optimal route planning, use FlyTo tasks to reach a designated point 1km away and at 100m height within 100 seconds.

Transmit During Flight: Achieve real-time data transmission and rapid modelling during flight. Complete data transfer upon landing and generate a rough model via the cloud.

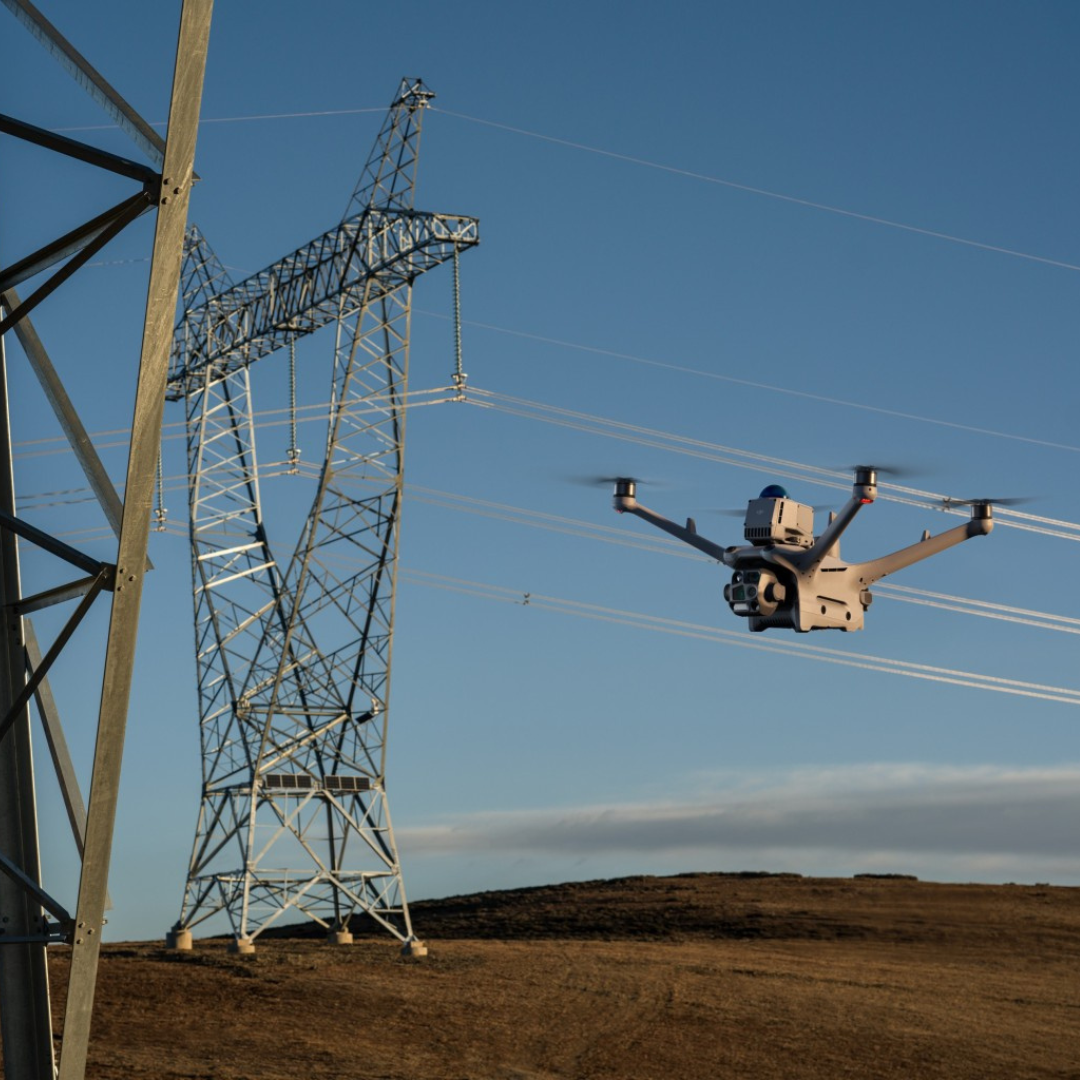

Obstacle Sensing Module: Add this module to equip your drone with LiDAR and millimeter-wave radar technology. This ensures more precise maneuvering in complex environments such as operating close to powerlines or conducting inspections in intricate substations.

DJI AL1 SpotLight: Illuminate subjects up to 100 metres away. When connected with the gimbal, the spotlight can follow the camera's movements to illuminate the camera's view.

DJI AS1 Speaker: Broadcast up to 300 metres away, up to 114 decibels at a distance of 1 meter. It supports recorded messages, media imports, and text-to-speech conversion.

Third-party Payloads: Connect third-party payloads, including parachutes via the aircraft's E-Port, or remotely control added payloads via FlightHub 2. There is also an additional port for a PSDK payload at the rear.
