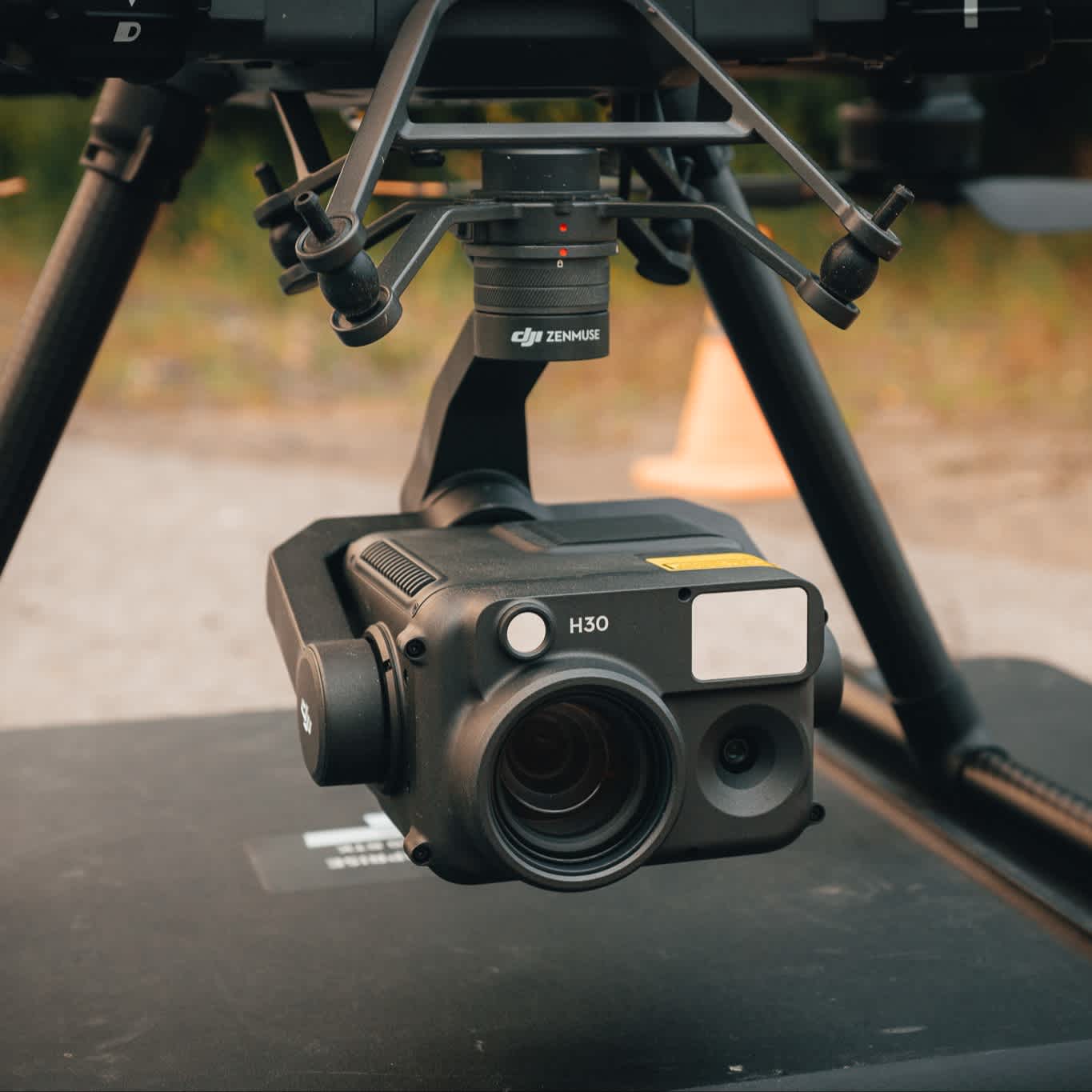

DJI Zenmuse H30 Zoom Camera

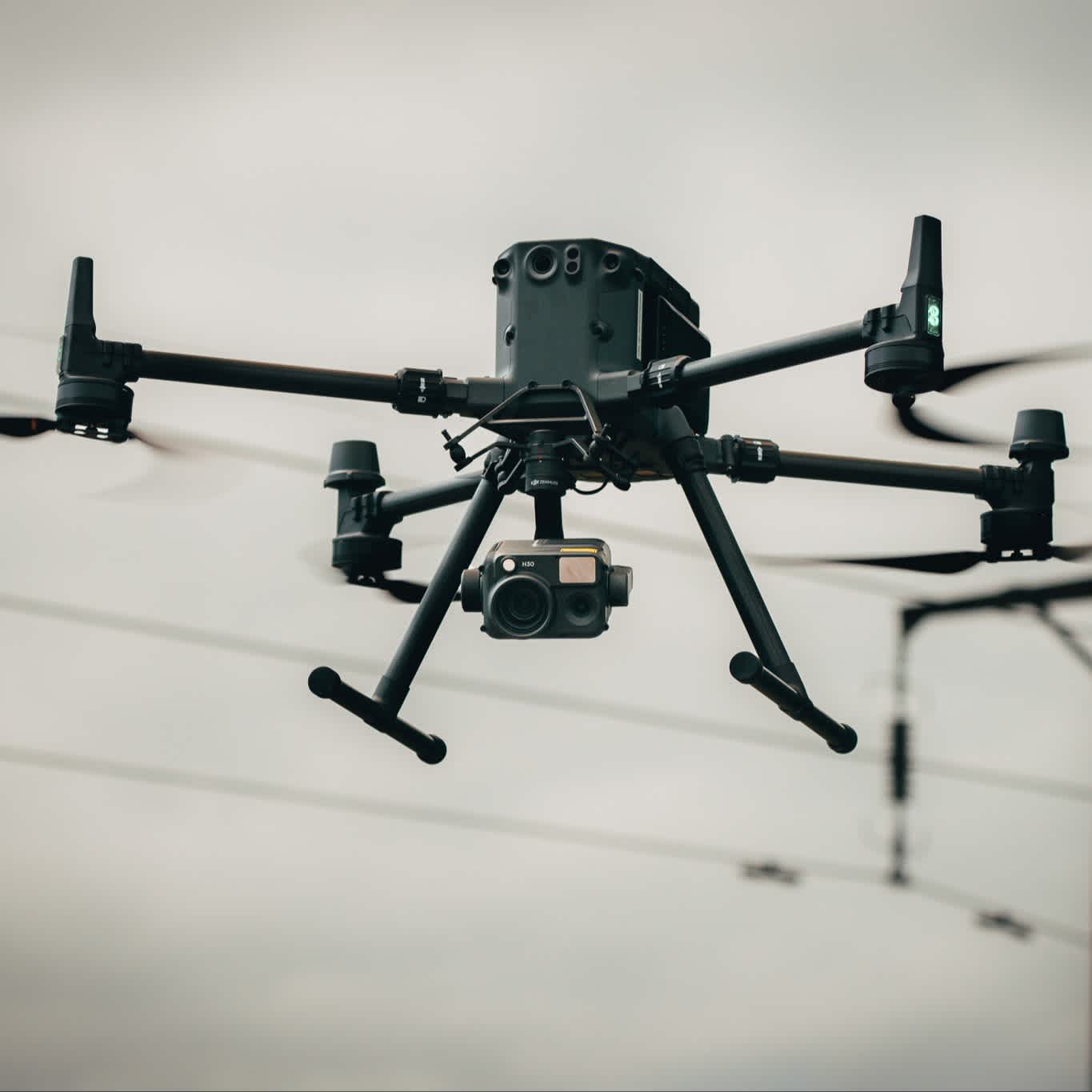

DJI Zenmuse H30 is a flagship multi-sensor payload for the DJI M350 RTK/M300 RTK. It is suitable for applications such as public safety and inspection.
Hybrid Payload The H30 has a 48MP wide-angle camera and 34x optical/400x digital zoom camera (both supporting night scene mode), a laser rangefinder with 3,000m range, and NIR auxiliary light.
Weather Proof This robust payload is IP54 rated and handles temperatures from -20° to 50°C.
DJI Care Enterprise Included as standard, DJI Care Enterprise (Basic) entitles you to two replacements in the first year for a fee.
- Overview
- Contents
- Specifications
- Support
- FAQ
DJI Zenmuse H30 Key Features
Next-Gen Multi-Sensor Payload
Improved Visual Zoom: 40MP camera with 400x digital zoom and 34x optical zoom and optimised stabilisation.
Wide-angle Camera: 48MP 1/1.3-inch CMOS sensor.
High-res Video: The wide-angle and zoom cameras support 4K UHD @ 30fps.
Laser Rangefinder: Enhanced range of up to 3,000m, with an accuracy of 0.2 m under 500m and 1m over 500m.
NIR Auxiliary Light: Light up dark environments up to 100 metres away using NIR bands.
Detect Details: Superior observation effect on target details 700m away compared to the H20 Series.
Multi-Touch Gesture: Easily manage the camera features using the touchscreen settings on the DJI RC Plus Controller.
Night Vision: Activate night mode with the options of full-colour or black-and-white to achieve higher clarity and accuracy in low-light environments.
Weather Resistant: IP54 rated and handles temperatures from -20° to 50°C.

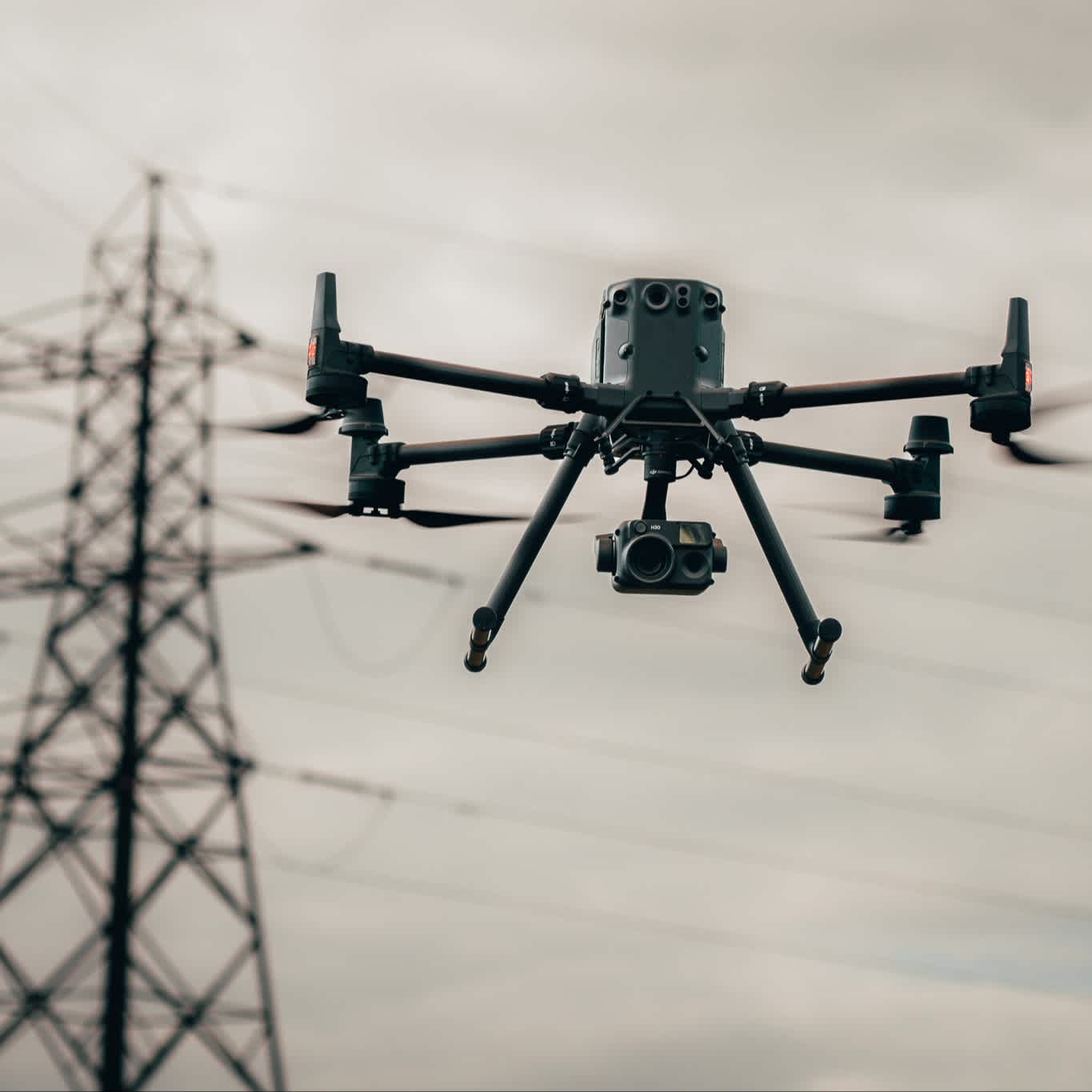

Drone Compatibility: Deploy with the DJI M350 RTK, or the DJI M300 RTK when using the DJI RC Plus.
DJI Zenmuse H30
Visual and Zoom Camera
Zoom Camera: 1/1.8-inch CMOS with effective pixels of 40MP. Supports night scene mode.
Superior Zoom Performance: 34x max optical zoom and 400x max digital zoom. Optimised stabilisation in telephoto video, maintained clarity during zooming, and faster focusing speed.
Better Object Detection From Afar: H30 has a better observation effect on target details at 700 metres compared to the performance of the H20 Series.
Wide Angle Camera: 1/1.3-inch CMOS wide camera with 48MP. Equivalent focal length of 24mm.
Recording: Obtain 4K and 1K resolution. Continuous recording for up to 2 hours.
Smart Capture: Smart Capture Mode enables the camera to assess the light intensity and dynamic range before capturing an image.
Laser Rangefinder: Enhanced laser rangefinder with up to 3,000m maximum measuring distance. Real-time display of latitude and longitude coordinates and altitude.
DJI Zenmuse H30
Photography Modes
The H30 has three photography modes with the zoom camera, all designed to help you capture accurate, high-quality data and footage.
Click and Aim: Control the gimbal easily by double-clicking your point of interest on the DJI RC Plus. The camera will move the gimbal until the selected area is in the centre of the screen.
One-Finger Swap: To adjust the gimbal angle, press and hold the screen until the cursor appears, then slide one finger on the screen.
Slide With 3 Fingers: To hide all the settings, swipe down with three fingers to hide all the settings in the interface. This allows you to focus solely on observing the camera feed.
DJI Zenmuse H30
Night Scene Mode
NIR Auxillary Light: When activated, the auxiliary light, also known as the IR Spotlight, and the IR Light option will turn on automatically. This switches the camera view to black and white while the auxiliary light enhances illumination at the centre of the screen.
Black and White Mode: In this mode, the landscape appears in black and white, and infrared light can be used to illuminate the area below without causing excessive brightness.
Full-Colour Mode: With this feature, the IR filter that would cut out the infrared light is removed, allowing you to see a brighter landscape.
Enhanced Noise Reduction: In the night vision setting, you will find the noise reduction options, enabling you to quiet the background noise as you film.
Laser-Assisted Focussing: By default, a laser range finder aids focusing. With Night Scene mode and IR Light activated, the laser spot is visible at the centre of the black-and-white camera view. You have the option to deactivate the laser module in On-Demand Mode, which turns it off when the RNG function is not in use.
DJI Zenmuse H30
Smart Features
Storage-Friendly Bit Rate: Dynamically compress video to save storage and CBR to maintain a constant bit rate.
Foreground Stabilisation: When videoing, foregrounds can be made the centre of focus easily for more accurate and reliable inspection data.
Electronic Dehazing: Electronic dehazing enhances footage quality, clarifying imagery from the zoom camera for a clearer, less distorted filming environment.
Smart Track: Accurate tracking of moving objects, such as vehicles or people, through automated identification, positioning, and continuous tracking.
AI Spot Check: Algorithms autonomously compare the target area with the real-time image to adjust the camera's shooting angle - increasing accuracy.
Flight Planning: Waypoint mode enables precise mission planning and recording. Or locate and model routes through emergency response mapping functionality.
DJI Zenmuse H30
H30 Series Vs H20 Series
The H30 features key upgrades over the original H20 series.
Higher IP Rating: Enjoy a more robust model with the H30, featuring an IP54 rating compared to the H20's IP44.
Enhanced Night Vision: Experience higher quality and more detailed footage with almost double the resolution, 3840 x 2160 @30fps.
Capture More Detail: The H30 boasts a larger 1/1.3-inch CMOS lens with 40MP, delivering higher quality data than the H20T's 1/2.3-inch 12MP lens.
Longer Laser Range Finder: H30 has a longer measurement range and a higher accuracy rate at 3000m and 0.2 m under 500 m.
Double The Zoom Capabilities: The H30 features 34x optical zoom and 400x digital zoom, offering double the zoom capabilities.
Wider NIR Auxilary Light Range: Experience a wider illumination range at 100m, enabling you to film a wider parameter in dark environments.
